Fujin tandem paraglider

Sky Paragliders Fujin

4 liner tandem / solo paraglider
Wide take-off weight range
Designed for coast soaring

Suits perfectly to intermediate pilot, regular tandem pilot, expert level pilot.
Depending on take off weight.

Technical data

Size (m²)	22	25	29
Number of cells	46	46	46
Glider weight (kg)	4.1	4.5	5.2
Flat aspect ratio (m)	4.95	4.95	4.95
Load test (EN 926-1)	202 KG	202 KG	202 KG
Take-off weight (kg)	50-202	60-202	85-202
Trimmers	yes	yes	yes
Number of risers	4	4	4

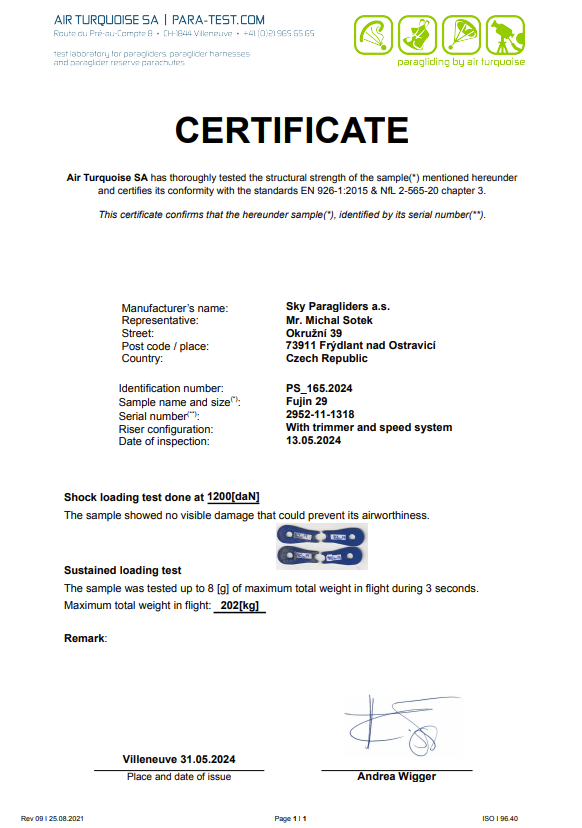

Tested at Air Turquoise (Villeneuve Switzerland)

Link – https://para-test.com/reports?model=Glider&id=2437

Wind speed to take-off weight table

Information in the table is provided by test pilot and should be perceived as recommendation.

Wind speed (Gust included on max wind)	Fujin 22 m²	Fujin 25 m²	Fujin 29 m²
Take-off weight (kg) 20-25 km/h	50-70	60-94	85-125
Take-off weight (kg) 25-30 km/h	60-94	85-125	94-154
Take-off weight (kg) 30-35 km/h	85-125	94-154	125-195
Take-off weight (kg) 35-40 km/h	94-154	125-195	154-202
Take-off weight (kg) 40-45 km/h	125-195	154-202	179-202
Take-off weight (kg) +45 km/h	154-202	179-202
Take-off weight (kg) +50 km/h	179-202

Conclusion / Example

Intermediate pilot takes Fujin 29 m² and flies solo with take-off weight 100 Kg at 25 km/h wind speed.
Tandem pilot that used to fly 39-42 m² gliders takes Fujin 29 m² and flies tandem with take-off weight 160 Kg (lightweight passenger) at 30 km/h wind speed.
Expert tandem pilot can take Fujin 29 m² with take-off weight 190 Kg at 40 km/h wind speed.

*expert meaning experience not only as regular tandem pilot, but also flying similar wing loading at similar wind speed. In this example (40 km/h) can be 15 m² miniwing with 100 Kg take-off weight
**always depends on particular spot aerology/ particular atmospheric conditions
*** table is being updated

Test / Demo flight

Currently possible to try Fujin in Portugal (Lisbon area). Please fill the form below and we will contact you.

Solo flight

Niki flies Fujin 25 m² , solo, 90 Kg take-off weight, with ~25 km/h winds. Just enjying the views.

Normal tandem flight

Hugo Gaudêncio flies Fujin 29 m² , 160 Kg take-off weight, with ~30 km/h winds. Staying in the lift area.

Expert level flight

Test pilot Hugo Gaudêncio flies Fujin 25 m² , 170 Kg take-off weight, with ~40 km/h winds. Doing touch down dive at beach level and recovery to a cliff.

Same wind, same size, different take-off weight

Niki flies Fujin 25 m² with ballast, take off weight 110 Kg.
Filmed by Hugo flying Fujin 25 m² with passenger, take off weight 150 Kg. Windspeed ~30-35 km/h

What is the secret?
First, pilotage manner plays a big role in soaring strong winds.
Second, taking out of equasion manuevers, Fujin penetration ability is incredible. Acceleration you get when using speed system (trimmers) makes difference.

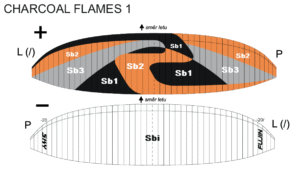

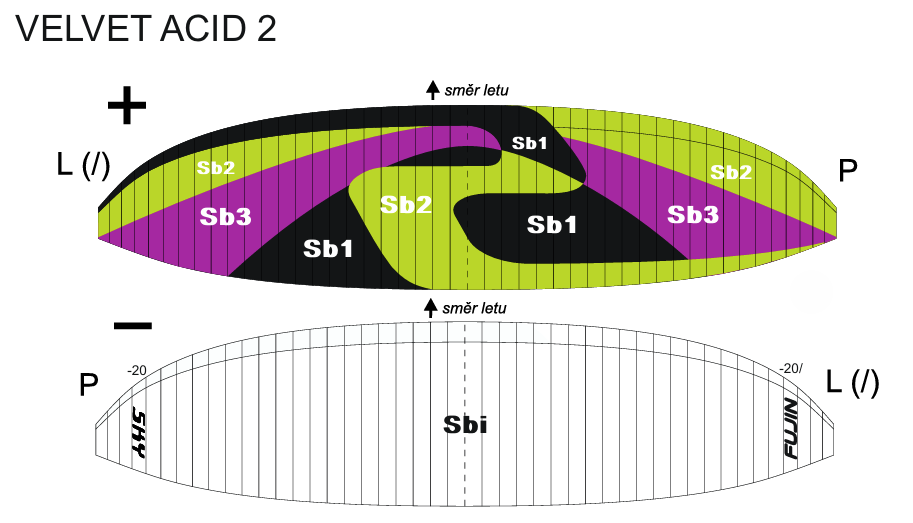

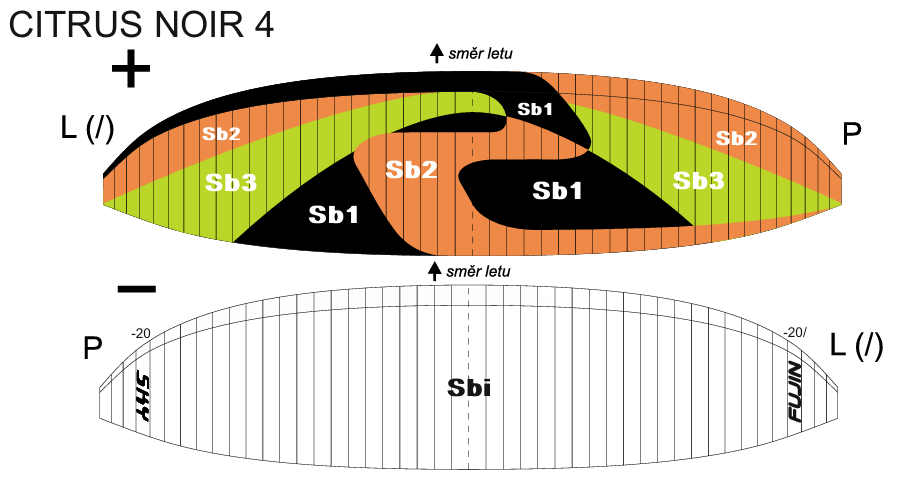

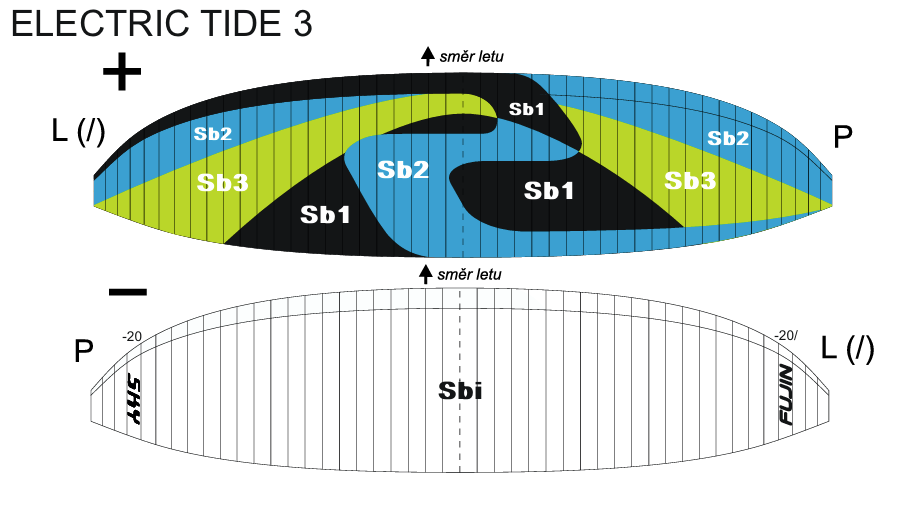

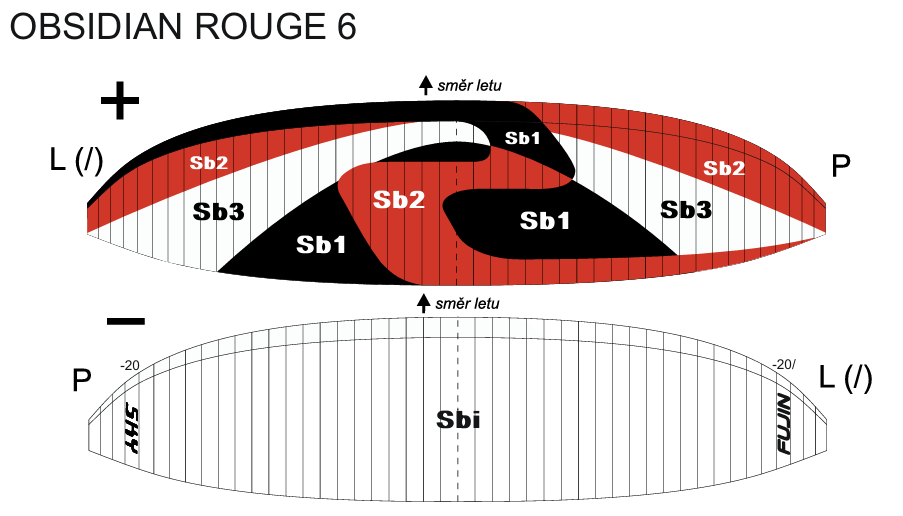

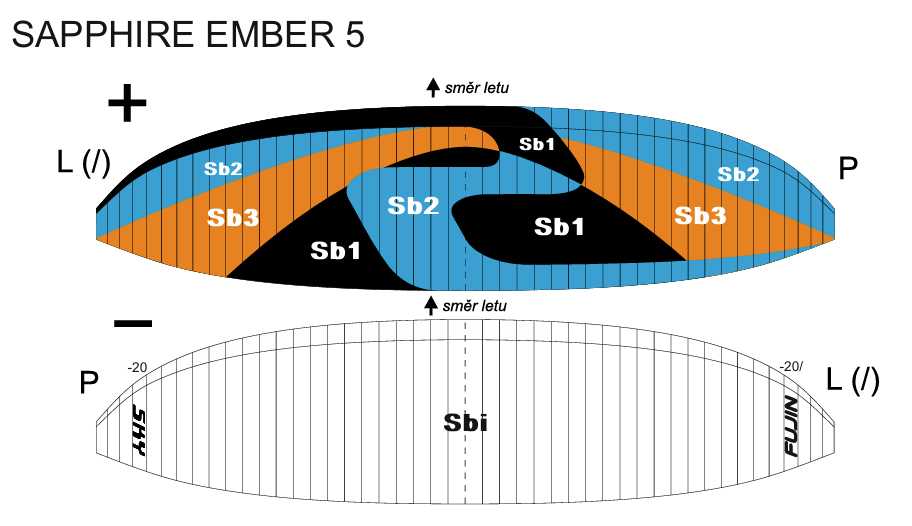

Fujin is available in following colours
